Base-lit Crimson Core v2
Note: When selecting you core, please be sure the core charging port matches to your saber.
Description:
The Crimson Core series of saber cores are the most advanced saber cores we offer. The crimson color of the board with the registered Crimson Dawn trademark indicates a saber was built with the Crimson Core.

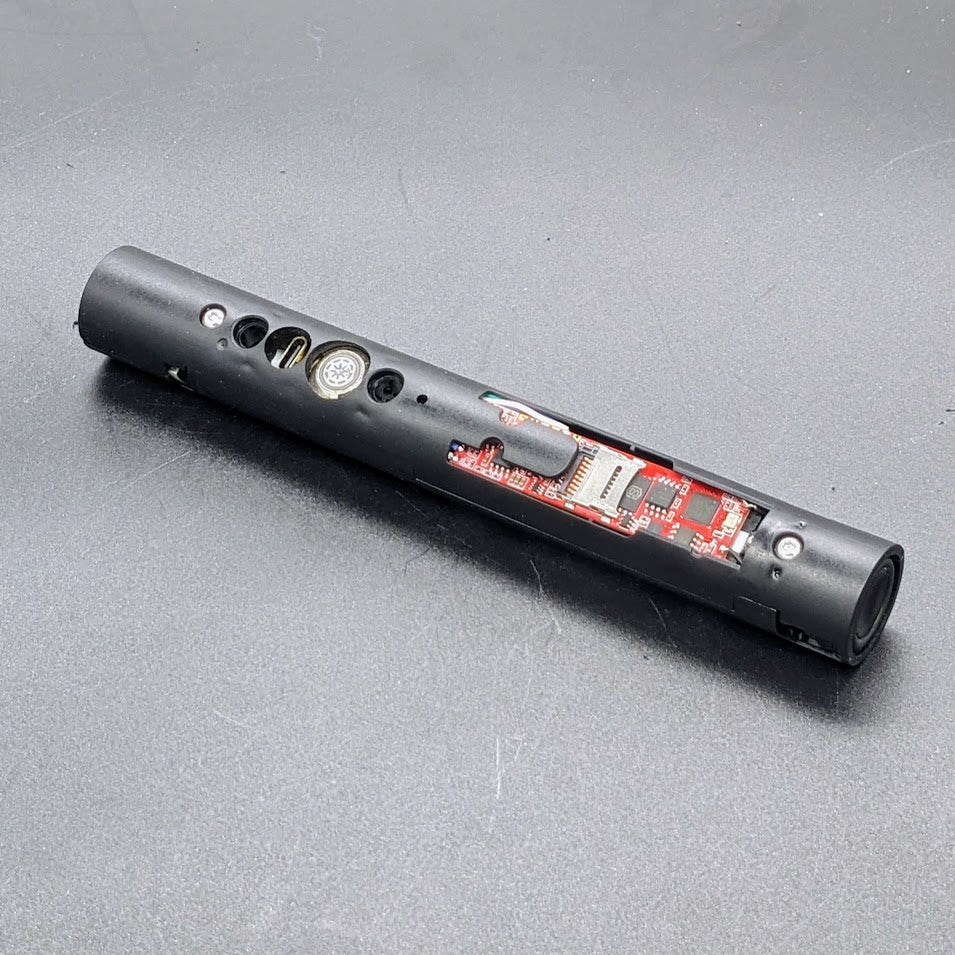

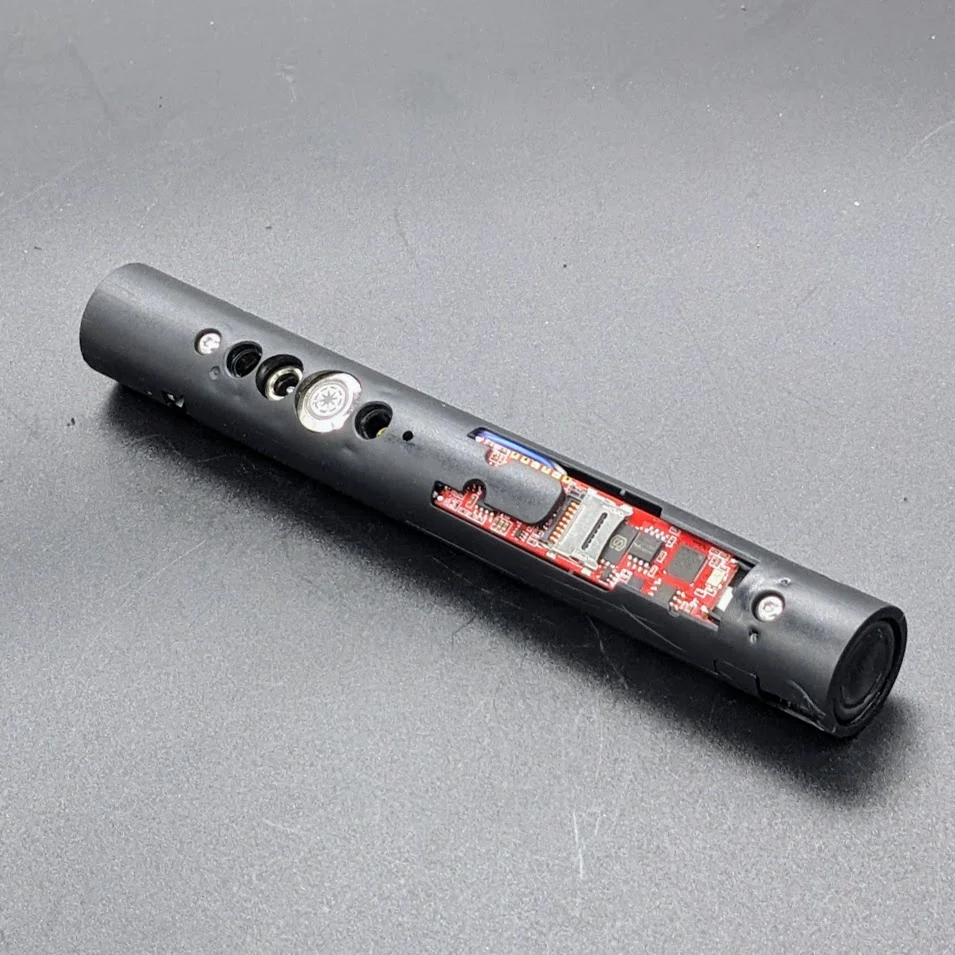

This listing is for a complete Crimson Core for a Base-Lit saber. This core is fully compatible with any Tier 2 or Tier 3 hilt and is a direct drop-in replacement for any saber using a standard base-lit core.
The Crimson Core proudly features real-time pitch modulation, commonly known as "Smooth Swing". This produces swing sounds by altering the duration, pitch and volume of the saber based on the speed and orientation of the saber in motion. The result is incredibly realistic sound effects that match your moves, making you one with your saber.
The Crimson Core comes in two variations, with a SD card and no SD card. With out the SD card the Crimson Core will still come with it standard features of Smooth Swing, Flash on Clash, Saber lock-up, Multi-Block mode, RGB color tuning, and Gesture controls. Along with 16 sound fonts. The SD card add-on an addition 30 Sound fonts, as well as the ability to edit the sounds fonts to reduce or increase the amount you have, by deleting or adding custom sound fonts. As well as any changes you make to the color of the blade or the setting you change on the sound font, to be saved on that sound font. (Please make a back up of the files before doing any editing to the SD card)
Installing this core is simple. All you have to do is remove the old core and slide this one in its place. An 18650 Li-Ion battery is INCLUDED with this unit.
If you have any questions at all, please do not hesitate to contact us or ask in our Facebook Group.
| Product Specifications | |
| Imperial | |
| Hardware Specs: | |
| Overall Length (in): | 7.48 |
| Weight (oz): | 4.10 |
| Outer Diameter (in): | 1.00 |
| Battery Compatibility: | 18651 Button Top |
| Battery Included: | Yes |
| LED Type: | Base-Lit 12 Watt RGB |
| Switch Type: | Backlit Anti-vandal |
| Charging Type: | In-hilt 2.1mm Standard/ USBC Type C |
| Hardware Notes: | NA |
| Software Specs: | |
| Sound Fonts: | 16 to 46 |
| Font List: | Column M |
| Smooth Swing: | Yes |
| Lock Up: | Yes |
| Flash on Clash: | Yes |
| Blaster Deflect: | Yes |
| Blade Effects: | 3 Types |
| Volume Control: | High, Medium, Mute |
| Theatrical Music Tracks: | 4.00 |
| Ignition/Retraction: | 3 Types |
| Programable: | Sound Fonts in SD Card |
| Software Notes: | Blu Tooth Capability (Beta), 46 Sound fonts with SD card |
| Metric | |
| Hardware Specs: | |
| Overall Length (mm): | 190 |
| Weight (g): | 116 |
| Outer Diameter (mm): | 25.4 |
| Battery Compatibility: | 18651 Button Top |
| Battery Included: | Yes |
| LED Type: | Base-Lit 12 Watt RGB |
| Switch Type: | Backlit Anti-vandal |
| Charging Type: | In-hilt 2.1mm Standard/ USB Type C |
| Hardware Notes: | NA |
| Software Specs: | |
| Sound Fonts: | 16 to 46 |
| Font List: | Column M |
| Smooth Swing: | Yes |
| Lock Up: | Yes |
| Flash on Clash: | Yes |
| Blaster Deflect: | Yes |
| Blade Effects: | 3 Types |
| Volume Control: | High, Medium, Mute |
| Theatrical Music Tracks: | 4.00 |
| Ignition/Retraction: | 3 Types |
| Programable: | Sound Fonts in SD card |
| Software Notes: | Blu Tooth Capability (Beta), 46 Sound fonts with SD card |
